CP3000 AUTOMATED
COAGULATION SYSTEM
RELIABLE RESULTS. UNINTERRUPTED.
SMART. FAST. COAGULATION RESULTS YOU CAN RELY ON.
The CP3000 automated coagulation system is designed for the challenges of today’s laboratory. With an emphasis on quality results and high throughput, the system’s advanced automation comfortably processes up to 400 PT tests per hour.
With a small footprint of 0.44m2 and no bench space required, the compact CP3000 coagulation analyzer is the optimal solution in both automation track and standalone environments. The intuitive touchscreen interface makes it simple for the operator to manage continuous operation of the CP3000 system for maximum throughput and laboratory efficiency while maintaining high quality.
For in vitro diagnostic use only. Not commercially available in all countries.
HIGH THROUGHPUT
With an emphasis on quick turnaround and high throughput, the system’s advanced automation only takes 2.5 minutes to the first PT results and comfortably processes up to 400 PT test per hour.

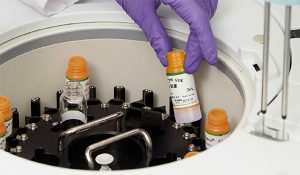

EXCELLENT ONBOARD STABILITY AND EFFICIENT REAGENT USE
The CP3000 system greatly reduces the likelihood your laboratory will delay reporting of critical patient results. With predominantly liquid reagents enabling easy reagent preparation, efficient reagent use, automatic switching of calibration curves and excellent reagent onboard stability, your laboratory operates rapidly and efficiently. That allows you to deliver reliable results to physicians faster.
WHY COMPROMISE?

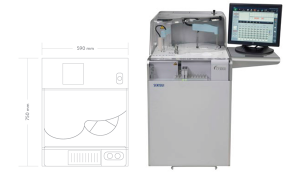

Space is at a premium for today’s laboratories. With a compact footprint of only 0.44m2 and the highest throughput to footprint ratio, the CP3000 analyzer delivers high quality results and consistent performance.
ESTABLISHED CORE LABORATORY OFFERINGS
Abbott has partnered with Sekisui to bring a powerful coagulation system into the Core Laboratory solution. Sekisui is a leader in coagulation with a large market share of high throughput coagulation systems in Japan. This competence, combined with Abbott’s Core Laboratory expertise, will bring significant benefits to Abbott customers. Your laboratory secures a system that integrates well within the laboratory and a partner with the expertise to fully integrate and optimize your workflow.
| SPECIFICATIONS | DESCRIPTIONS |
| Measurement Channels | 14 clotting channels, 6 chromogenic and immunoturbidimetric channels |
| Clotting time assays | PT, APTT, TT, Fibrinogen (FBG), Thrombin Time (TT), Factor Assays, Dilute Russell Viper Venom (DRVV) |
| Chromogenic assays | Antithrombin, Plasminogen (PLG), Plasmin Inhibitor (a2-PI), Heparin Anti-Xa, Protein C (PC) |
| Immunoturbidimetric | Fibrin/Fibrinogen Degradation Products (FDP), D-dimer (DD) |
| Measurement Principle | Light-scattering photometry method for clotting assays; absorbance photometry method for chromogenic and immunoturbidimetric assays |
| Test Throughput | Up to 400 tests/hour (PT), up to 200 tests/hour (including chromogenic and immunoturbidimetric assays) |
| Light Source | LED (660 nm), halogen lamp (405/570/730 nm) |
| Sample Capacity | 50 samples (10 racks x 5 samples) |
| STAT Sample | 2 dedicated STAT lanes |
| Reagent Capacity | 30 refrigerated positions; 7 diluent and deficient plasma positions; 2 detergent positions |
| Calibration Curve | Automatic dilution setting; multi-point calibration curve; INR calibration curve; automatic switching of calibration curves |
| Accurate Control | Daily time-series, twin plot |
| Operating System | 17-inch touch panel/Windows® 7 (IBM PC-compatible) |
| Sample Barcode Reader | Internal reader, reads 16 digits, 2 of 5, CODE 39, CODE 128, NW 7 bar-code types |
| Physical Dimensions | Without CTS: 590 W x 740 D x 1190 H mm (analysis unit only) With CTS: 590 W x 915 D x 1190 H mm (analysis unit only) |
| Weight | Without CTS: Approx. 185 kg (analysis unit only) With CTS: Approx. 200 kg (analysis unit only) |
| Anticoagulant |
| Anti-Xa (Heparin) |
| Bleeding |
| Factor II |
| Factor IX |
| Factor V |
| Factor VII |
| Factor VIII |
| Factor X |
| Factor XI |
| Factor XII |
| Fibrinolysis |
| D-Dimer |
| Fibrin/Fibrinogen Degradation Products (FDP) |
| Plasmin Inhibitor (PI/APL) |
| Plasminogen (PLG) |
| General Coagulation |
| Activated Partial Thromboplastin Time (aPTT) |
| Fibrinogen (Fbg) |
| Prothrombin Time (PT) |
| Thrombin Time (TT) |
| Thrombophilia |
| Antithrombin Activity (AT) |
| Dilute Russell Viper Venom (dRVV) |
| Protein C |
FULL CORE LABORATORY INTEGRATION
Abbott provides the expertise of a trusted lab partner with a harmonized family of innovative systems, assays, and informatics solution to streamline your laboratory operations.
RESULTS YOU CAN RELY ON
With an emphasis on quality results and high throughput, the system’s advanced automation comfortably processes up to 400 PT tests per hour and 2.5 minutes to first PT results. You can get your STAT test faster than ever before.
SIMPLE & INTUITIVE
The CP3000 system is designed for easy and efficient operation through the entire laboratory workflow. The intuitive software makes this a powerful coagulation system that the entire team can operate.
FLEXIBLE & COMPACT
Unprecedented throughput to footprint ratio gives your laboratory an edge in today’s challenging environment. High throughput with a small footprint of 0.44m2, and dedicated STAT lanes for on-demand results make the CP3000 system the optimal solution for the efficient lab.
